Aluminum Metal Sheet Floor Decking Roll Forming Machine
|Unit Price:||20000~45000 USD|
|Payment Type:||T/T,L/C,D/A,D/P,Western Union,OA|
|Terms of Trade:||FOB|
|Min. Order:||1 Set/Sets|
|Delivery Time:||45 Days|
|Place of Origin:||China|
Model No.: Zt-003-152
Aluminum Metal Sheet Floor Decking
Machine Description: Floor Deck Roll Forming Machine
Quantity: 1 SET
Delivery time: 45 working days after receiving deposit
Container Type: One 40GP
Price/ USD (FOB TIANJIN): 19500-29500
Floor Deck Roll Forming MachineProcess Flow:
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving
Product name: floor deck roll former
1. Suitable Material
2. Product Specifications
Length: Any length
Length Tolerance: ±2mm/6m
3. Working Speed: 25 m/min (Standard machine)
4. Control System: Mitsubishi/Siemens PLC& transducer (Custom)
5. Total Power: 15KW
6. Total Weight: About 14T (Up to final design)
Components of floor deck roll forming machine:
1. Manual decoiler: set 1
2. Main Forming Machine: set 1
3. PLC control system: set 1
4. Hydraulic pump station: set 1
5. Post cut: set 1
6. Electric motor: set 1
7. Output table: set 1
8.Counter: set 1

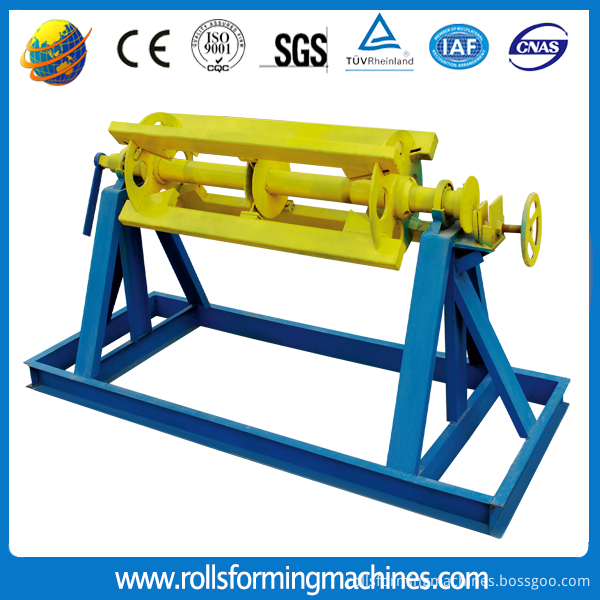

Usage: It is used to support the steel coil and uncoil it in a turntable way.
Passive uncoil pulled by roll forming system
Loading capacity: 5T
Uncoiling width: 1250mm
Inner diameter: 450-550mm
Coil feeding part
Usage: Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and lifetime.
Main parameter of Floor Deck Roll Forming Machine
1. Length of the main part: 14200*1300*1400mm
2. Weight of main part: About 14 t
3. Voltage: 380V/50HZ3Phase (as customer`s request)
4. Roller fixer: Guide column
5. Frame: Middle plate welded (Memorial arch frame type)
6. feeding width: 1000mm
7. Drive mode: chain
8. Material of rollers: 5# steel with tempering
9. Material of shafts: 45# steel with tempering
10. cutting: hydralic cutting
11. Number of rollers: 30 rollers
14. Main power: 15kw (Cycloidal planetary gear speed reducer)
Advanced hydraulic drive with track cutting, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.
Blade Material: Cr12 steel with quenched treated 60-62°C; Cutting system: Full automatic

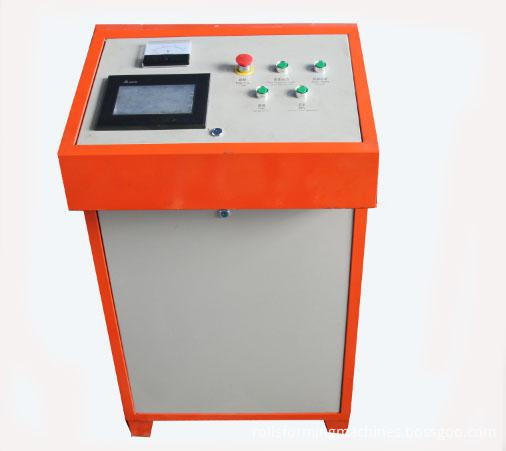

Screen: Text screen displayer
PLC: Taida DVP14ES from Taiwan
Orgin: Advanced hydraulic system from Taiwan
1. Installation and training:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
C.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service
a.One year guarantee for whole machine.
b.24 hours technical support by email or calling
Cangzhou ZHONGTUO Roll Forming Machinery is a professional manufacturer and exporter which is concerned with the design, development and production of cold roll forming machines. The company cooperates with several production factories and associated enterprises.
Engineers and technicians are rich in experience of designing, developing, and manufacturing of machines. We pay close attention to new trend of technologies. All products comply with international quality standards and are greatly appreciated in markets throughout the world.
- Company Name: Zhongtuo Roll Forming Machinery Co., ltd
- Representative: Xu Lianxing
- Product/Service: roof tile making machine , steel deck roll formin machine , Steel Frame Forming Machine , Welded pipe Making Machine , roller shutter door making machine , stud track roll forming machine
- Capital (Million US $): 5000000 USD
- Year Established: 2006
- Total Annual Sales Volume (Million US $): US$2.5 Million - US$5 Million
- Export Percentage: 91% - 100%
- Total Annual Purchase Volume (Million US $): US$2.5 Million - US$5 Million
- No. of Production Lines: 10
- No. of R&D Staff: 11 -20 People
- No. of QC Staff: 5 -10 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 50,000-100,000 square meters
- Factory Location: Traffic Street, Fuzhuang Industrial Zone, Botou, Cangzhou City, Hebei Province, China.
- Contact Person: Mr. Cary xu
- Tel: 0086-0317-2191158
